35220 R1 Manual Switch Left 30° Track (G-Scale)

$42.99

Please fill in the form below if you'd like to be notified when it becomes available.

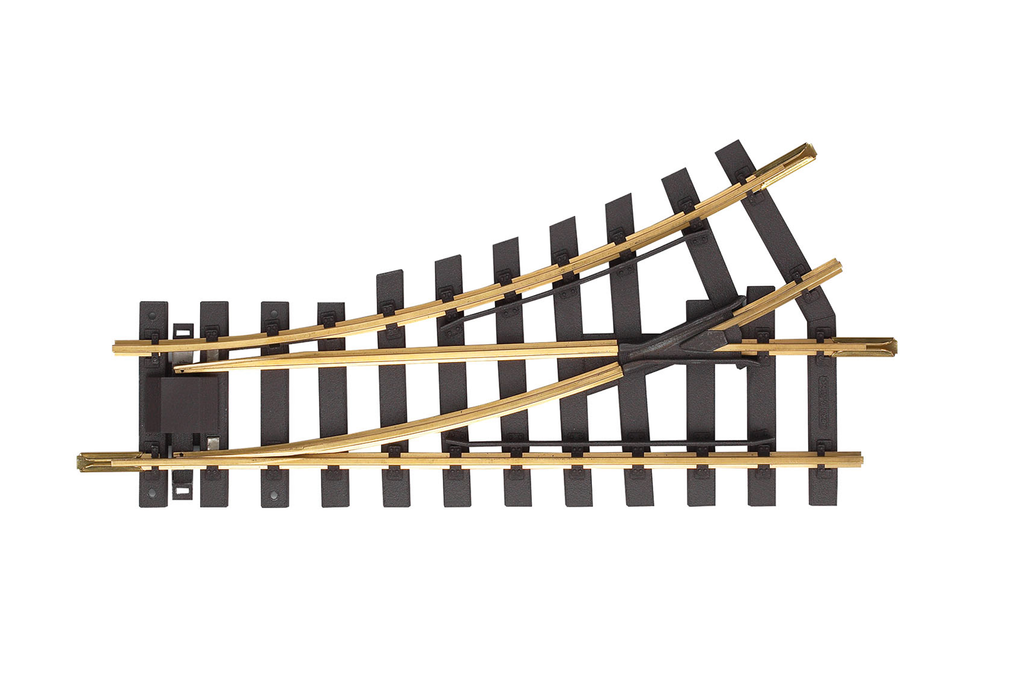

35220 R1 Manual Switch Left 30° Track (G-Scale)

Features

  • R1 Curve: Radius = 600mm / 23.6"
    • Diameter = 1200mm / 47.2"
  • Each 35220 switch is 30°
  • Each 35220 fits in the place of one G320 (320mm) Straight Track
  • Built-In light spring mechanism holds rails where they are set, but allows trains to pass through against the points rails without derailing.  No separate machine or manual switch throw needed.
  • Hidden jumper wires to ensure reliable long term electrical contact.
  • Easily convert any PIKO switch to remote operation by adding a PIKO 35271 switch machine and a switch controller
  • 100% Virgin Brass Rail
  • Code 332 (0.332” high) solid rail.
  • Ties are made of ultraviolet-stabilized HDPE
  • Unique track geometry makes even complex track plans simple to build with only a few different track sections.
  • Compatible with most other brands of G-Scale track for unlimited expansion possibilities.
  • Sturdy push-together rail joiners are factory-formed to fit tightly to the rail profile.
  • Compact design, coordinated with the PIKO G-Track geometric system.
  • Made in our own factory in Germany.

For best results outdoors, use PIKO RailClamps.

For more information on PIKO G-Scale Switches, see the following video...

G-Track Turnouts
